When considering a cabinet that features performance and construction normally seen on higher end units, with pricing that falls well below premium systems, Raptor Blast cabinets are an ideal choice. Manufactured in the USA and built to perform, these units are perfectly suited to handle all hobby and production applications. Cabinets come standard with siphon fed functionality and are available in 42” x 26”, 48” x 36” or 54” x 46” working dimensions. Available dust collector options include 100 CFM bag style system, 500 CFM cartridge style system and 900 CFM cartridge style system featuring a reverse pulse function. An optional 500 &900 CFM reclaimer is also available to work in tandem with their respective dust collectors for applications where finer abrasives are used. Additional wear options such as abrasion resistant curtains and track/turntable upgrades are available. For applications requiring maximum cleaning efficiency and increased production, cabinets can be modified with a modular direct pressure feed system that features a 1.5 cubic foot pressure vessel and 900 CFM dust collector/reclaimer. Listed below is a CFM consumption chart that helps illustrate the air requirements for each nozzle/air jet setup. This information can be used to ensure you have a properly sized air compressor available to use with these systems.

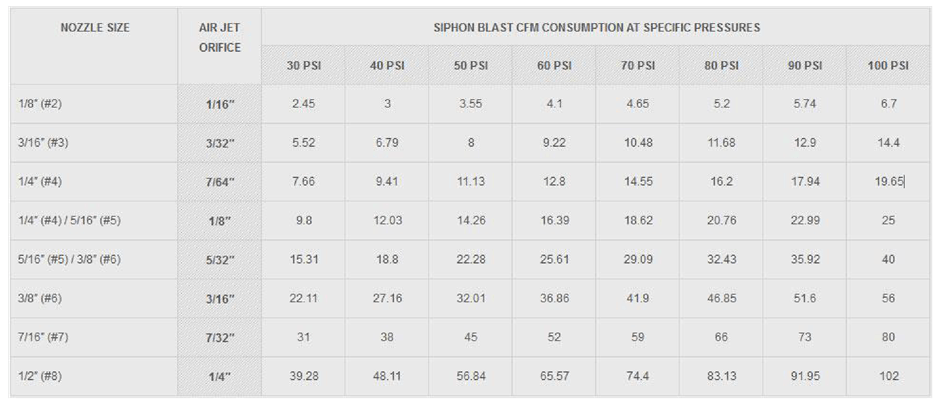

Blast Nozzle CFM Consumption Chart (Siphon Fed Systems)

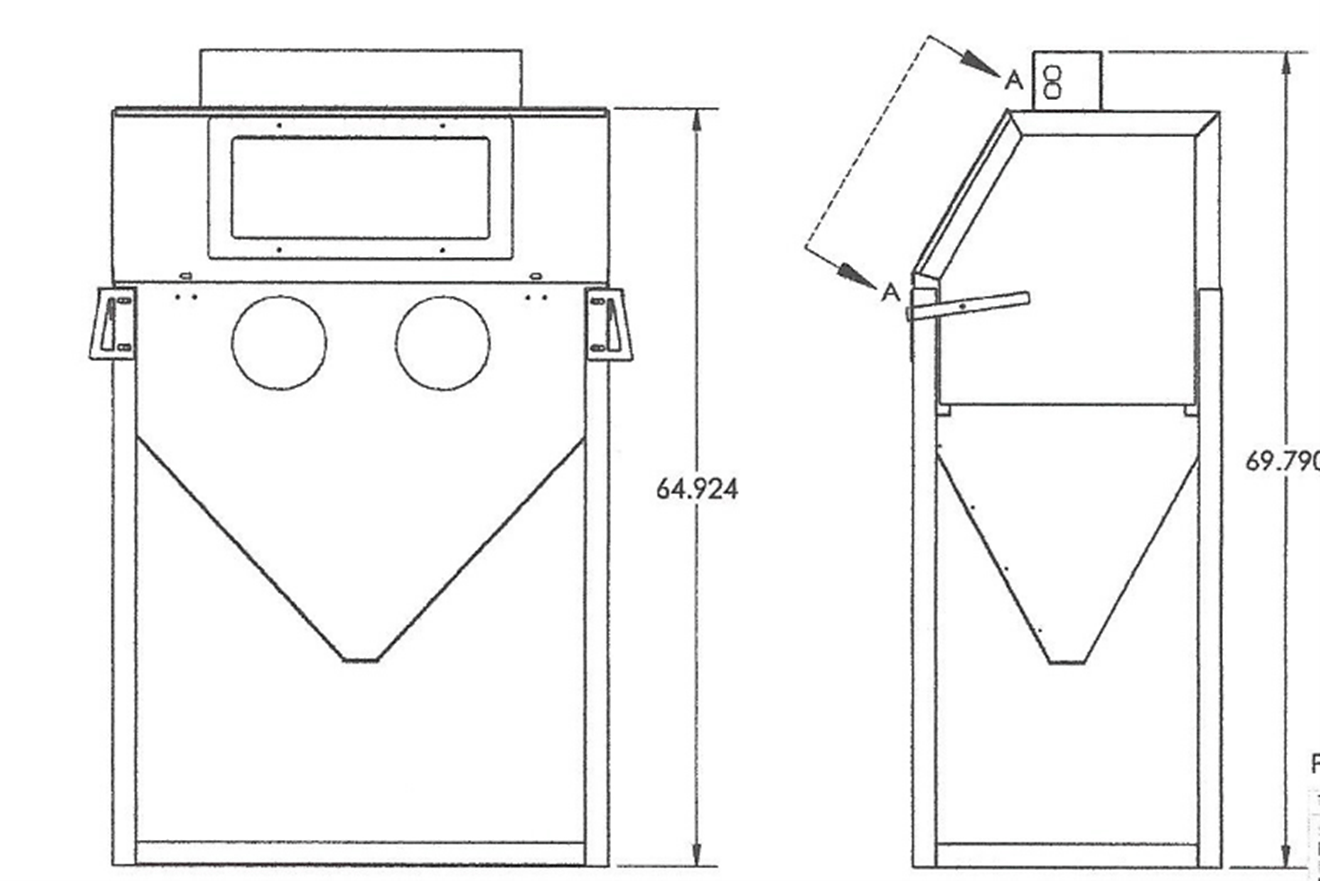

Blast Cabinets - RB 4226

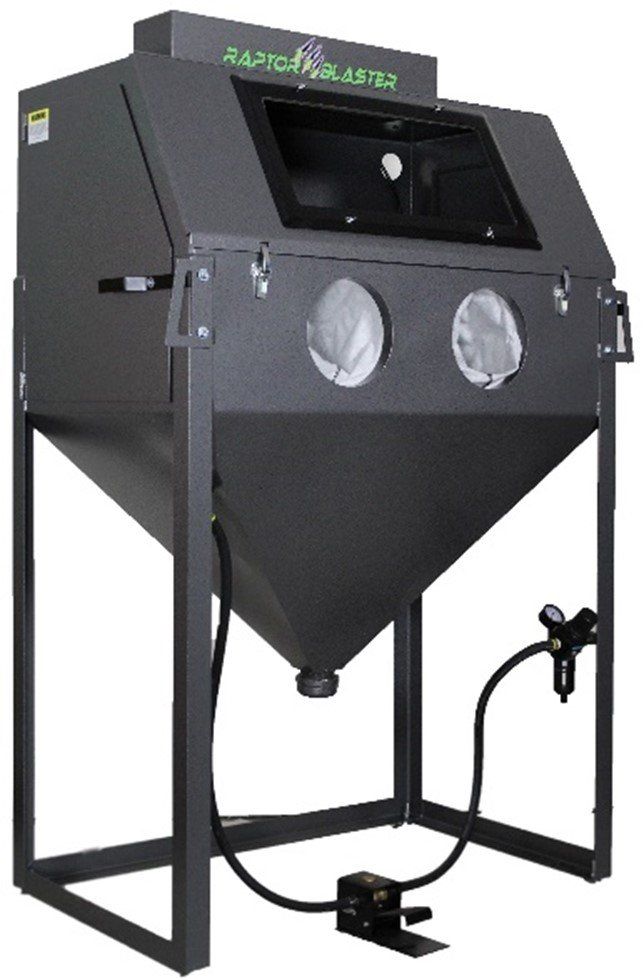

Raptor Blast’s 42” x 26” cabinet is perfect for blasting smaller parts and equipment. Standard offering includes a 100 CFM bag style dust collector. 500 CFM cartridge style dust collector is available should the user require a larger dust collection system.

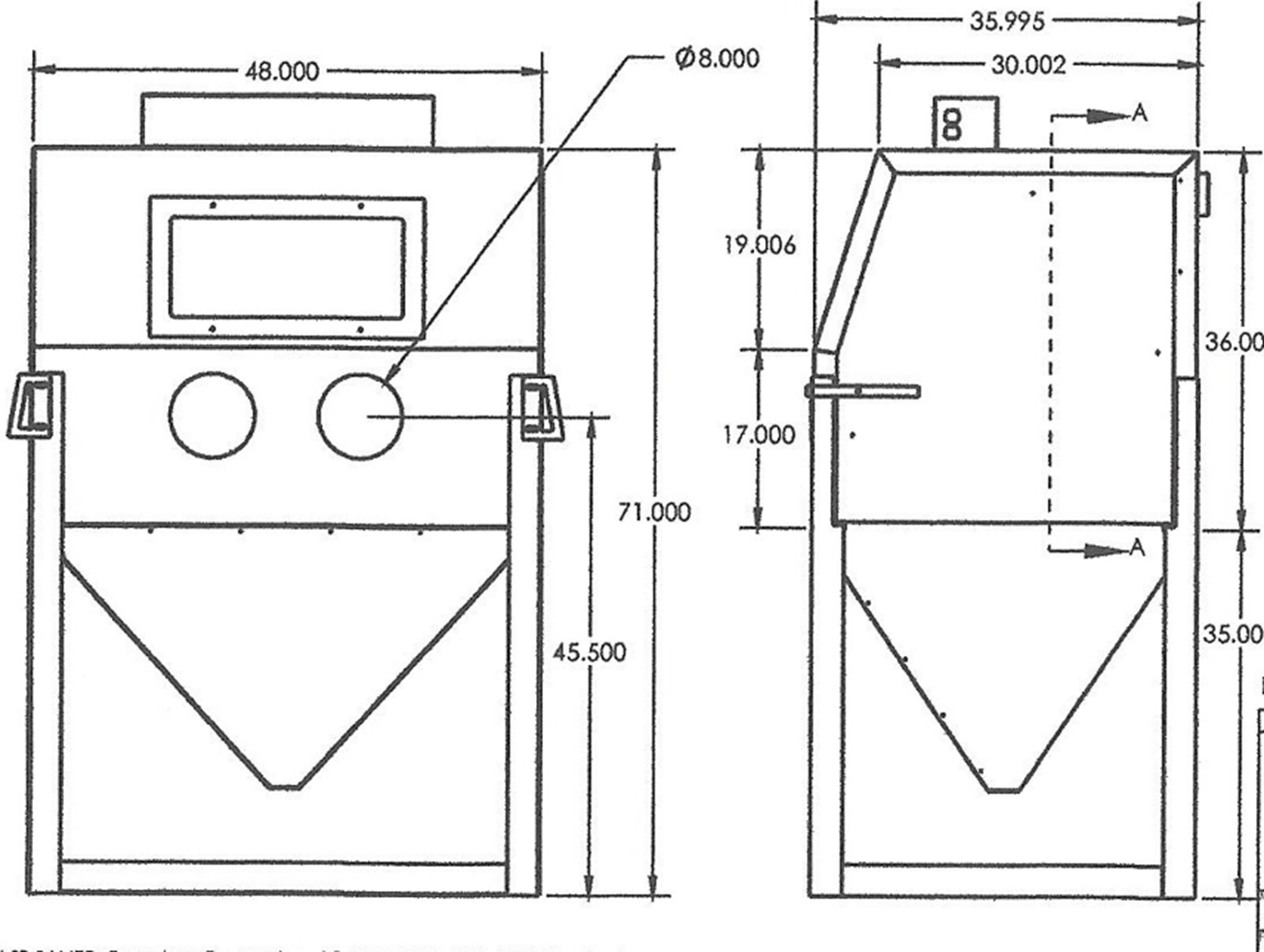

RB 4836

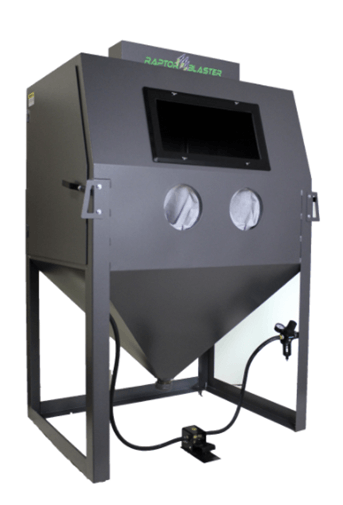

Raptor Blast’s 48” x 36” cabinet is the perfect size for most applications involving large medium size pieces. It can be equipped with any of the available dust collector/reclaim options. Additional upgrades include the exterior track system and manual turntable.
RB 5446

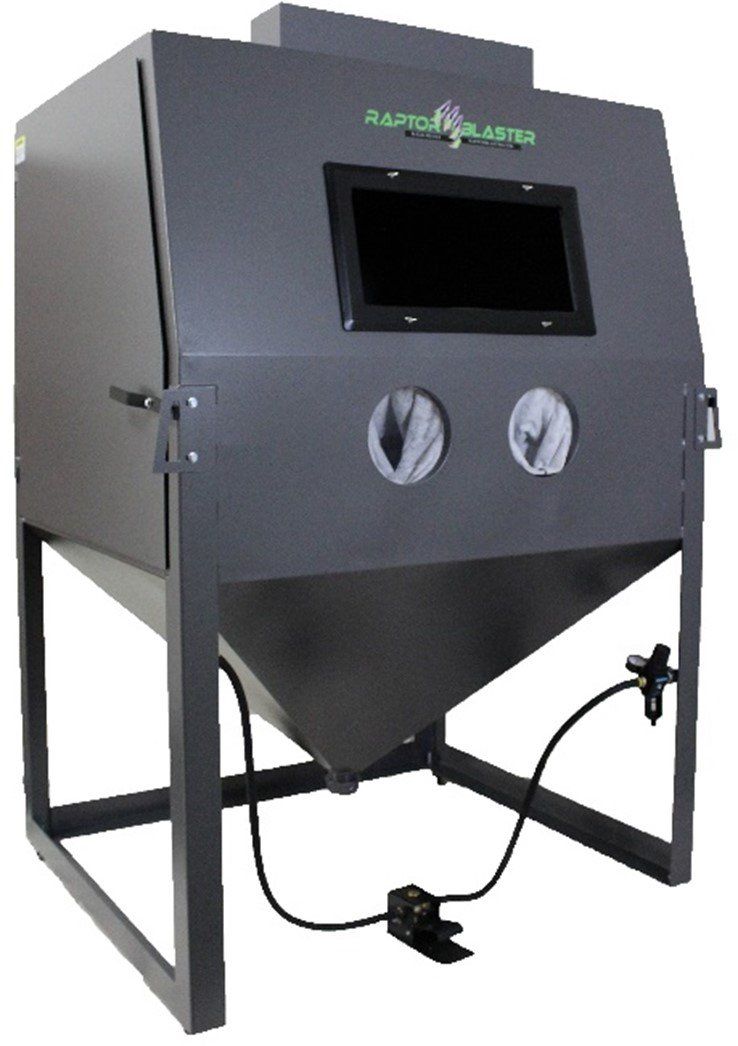

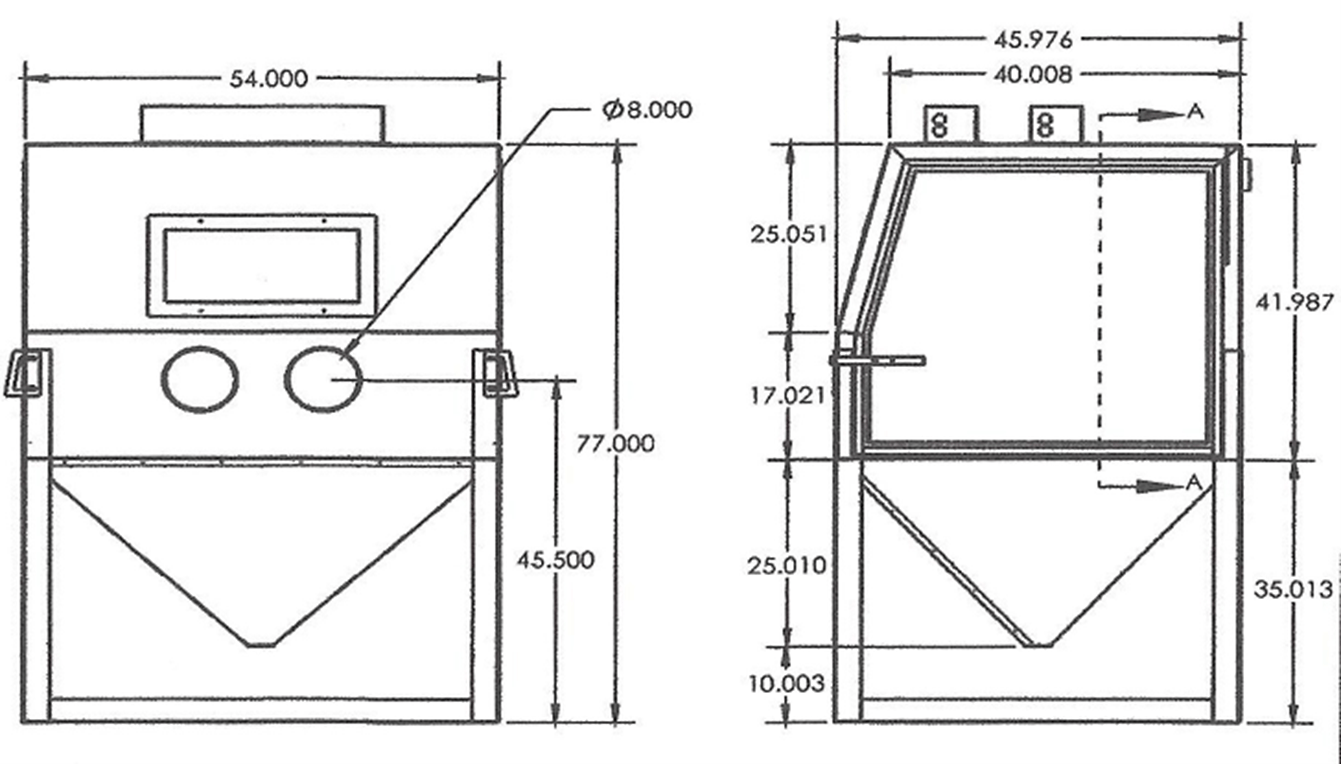

Raptor Blast’s 54” x 46” cabinet is designed to accommodate very large items and offers up the best versatility in terms of working space. This cabinet can be equipped with any of the available dust collector/reclaim options. Additional upgrades include the exterior track system and manual turntable.
Direct Pressure System Upgrade

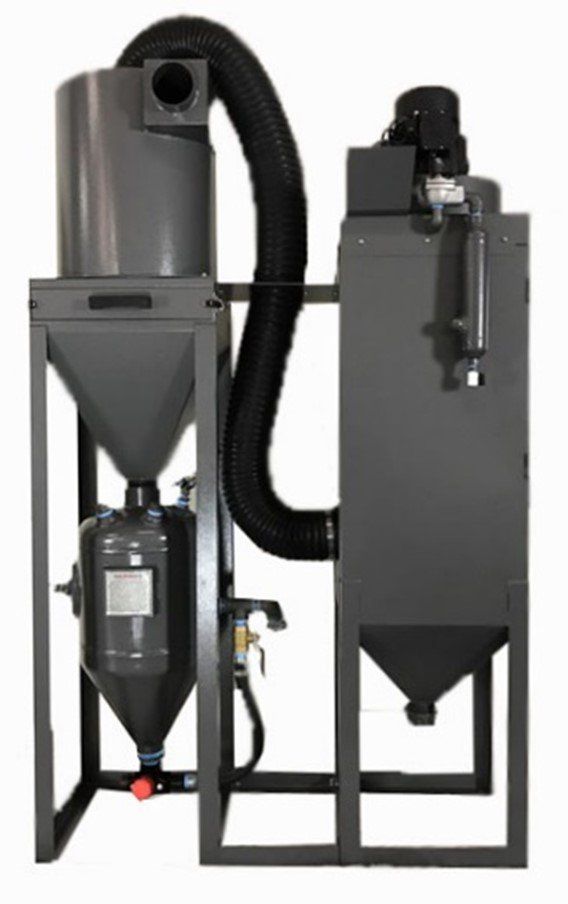

The direct pressure system upgrade offers massive increases in blast cleaning rates and overall production/throughput. This modular system sits alongside the blast cabinet pulling out dust and debris, separating good material from trash and returning that clean material back into the pressure vessel for reuse. This allows the user to continually blast with clean material and maximize abrasive lifespan and efficiency. The direct pressure unit features a 1.5 cubic foot pressure vessel equipped with a micro metering valve for precise control of abrasive flow. Extraction and separation are achieved using the 2HP/900 CFM dust collector and reclaim system.
RB100 Dust Collector

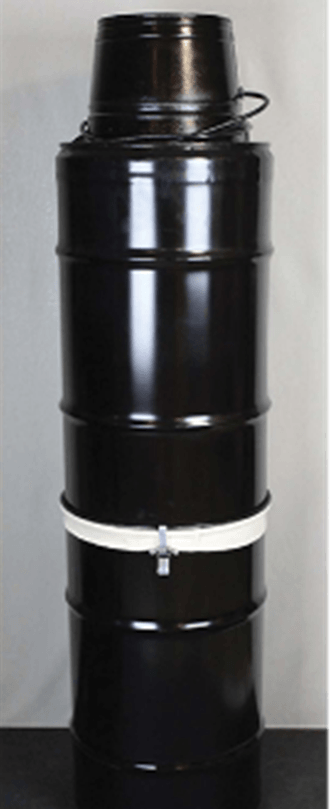

The RB100 dust collector was designed for use with most small and medium sized cabinets. The integrated 1/3 HP motor pulls a consistent 100 CFM ensuring that the work area stays clean and that clear visibility is maintained while blasting.
RB500 Dust Collector

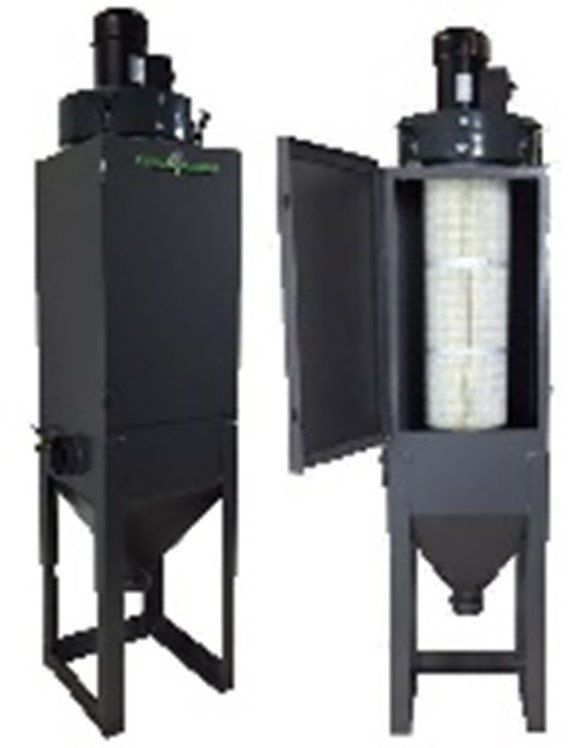

The RB500 is a cartridge style dust collector designed for use with all size cabinets. Its large motor pulls a consistent 500+ CFM ensuring maximum visibility during the blasting process. The RB500’s unique design allows for top loading of the filter cartridge thus ensuring a tight seal with no leaks. Cleaning of the cartridge is achieved by manually pulsing the system via external lever. This pulsation allows for dust to break loose from the cartridge and flow down the sump at the base of the unit where it can be emptied and disposed of. This unit can be coupled with the RB500 reclaim unit to create a highly efficient all-in-one dust collection/recovery system.
RB900 Dust Collector

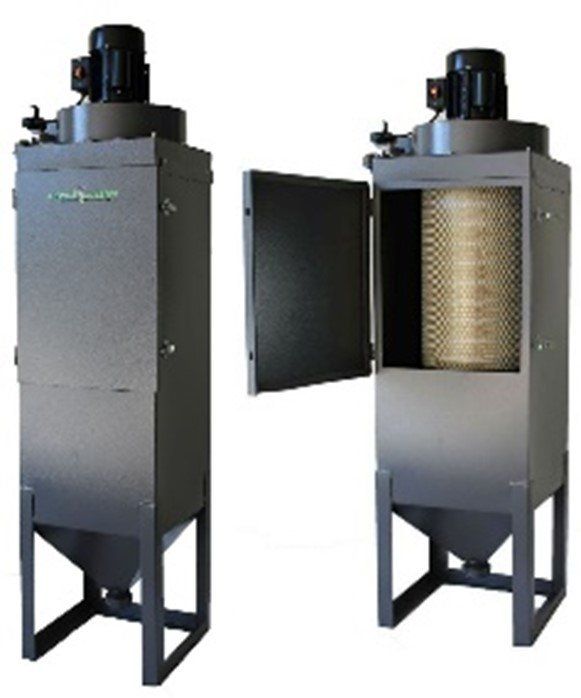

The RB900 is a cartridge style dust collector designed for use with all size cabinets. Its large 2HP motor pulls a consistent 900 CFM ensuring maximum visibility during the blasting process. The RB900’s unique design allows for top loading of the filter cartridge thus ensuring a tight seal with no leaks. Cleaning of the cartridge is achieved by manually pulsing the system via external lever. This pulsation allows for dust to break loose from the cartridge and flow down the sump at the base of the unit where it can be emptied and disposed of. This unit can be coupled with the RB900 reclaim unit to create a highly efficient all-in-one dust collection/recovery system.
500 & 900 CFM Reclaim Units

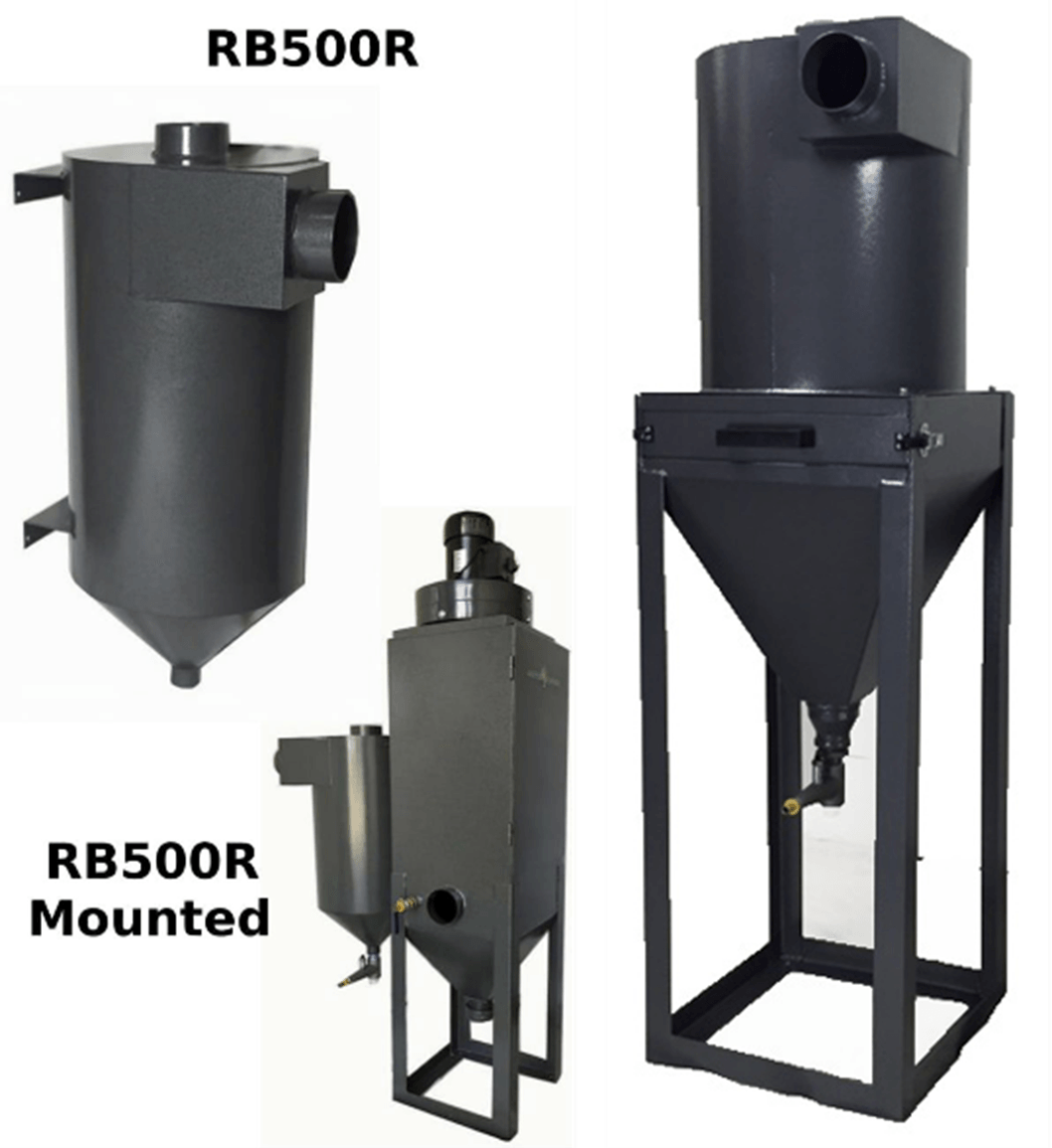

The RB500R and RB900R reclaim units are designed to work in tandem with their respective dust collectors giving the operator the ability to separate good clean abrasive from the dust and debris collected during the blasting process. Once the clean abrasive is separated from the “trash”, it is returned to the cabinet to be used again. Proper reclaiming and reusing of abrasive will help to get the most of the material’s lifespan, maximizing return on material costs and reducing unnecessary waste. The RB500R is capable of being mounted directly to the body of the cabinet or to the side of the RB500 dust collector. The RB900R is a standalone unit. Both units are made from 12-gauge steel and hand welded to prevent seems or potential leaks.
Clemco Blast Cabinet Systems
Clemco blast cabinets have been a top performer in the industrial cabinet market for decades. Their rigid construction, state of the art engineering and proven performance make them an excellent choice for any type of production environment. Clemco’s product offering includes a large variety of cabinet models, each with their own listing of upgrades and configurations. In the sections below, we have listed the most widely used models from their current lineup. Please note that there are numerous options and models not listed on this page and, should you require help choosing the right cabinet system, we welcome any questions you might have in efforts of finding the right system for your specific application.

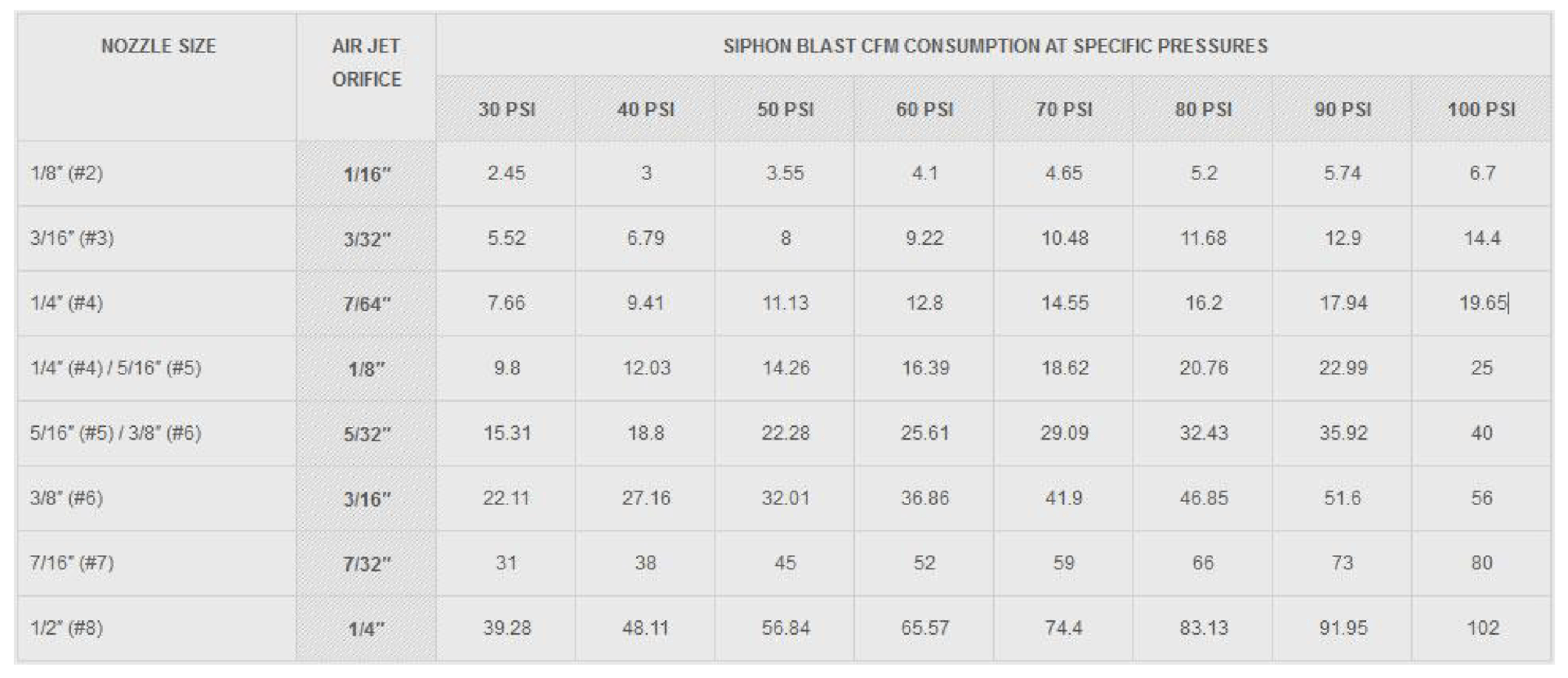

Blast Nozzle CFM Consumption Chart (Siphon Fed Systems)

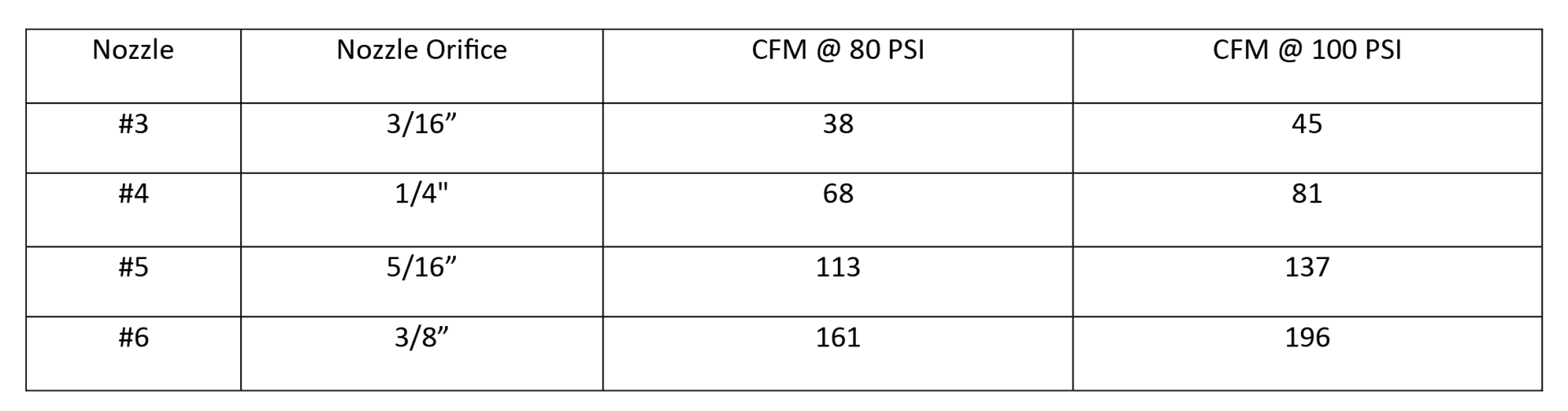

CFM Consumption (Pressure Blast Cabinet)
Note: It is important to have a compressor that can accommodate one nozzle size larger than what you will be using. This will account for the inevitable wear to the nozzle which will increase the required amount of CFM.

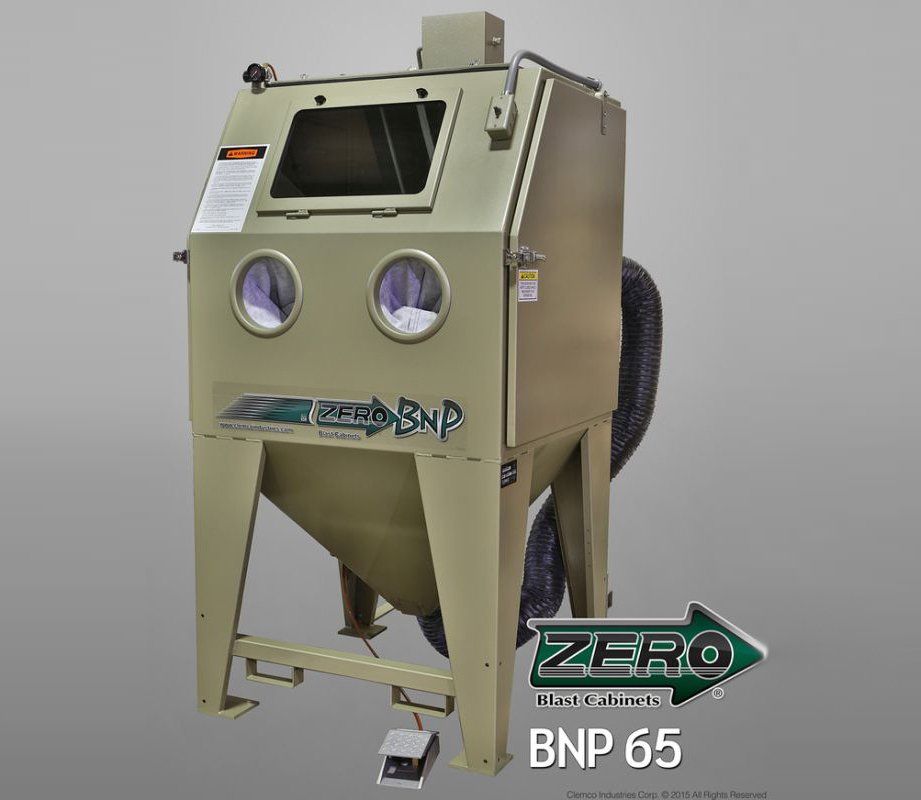

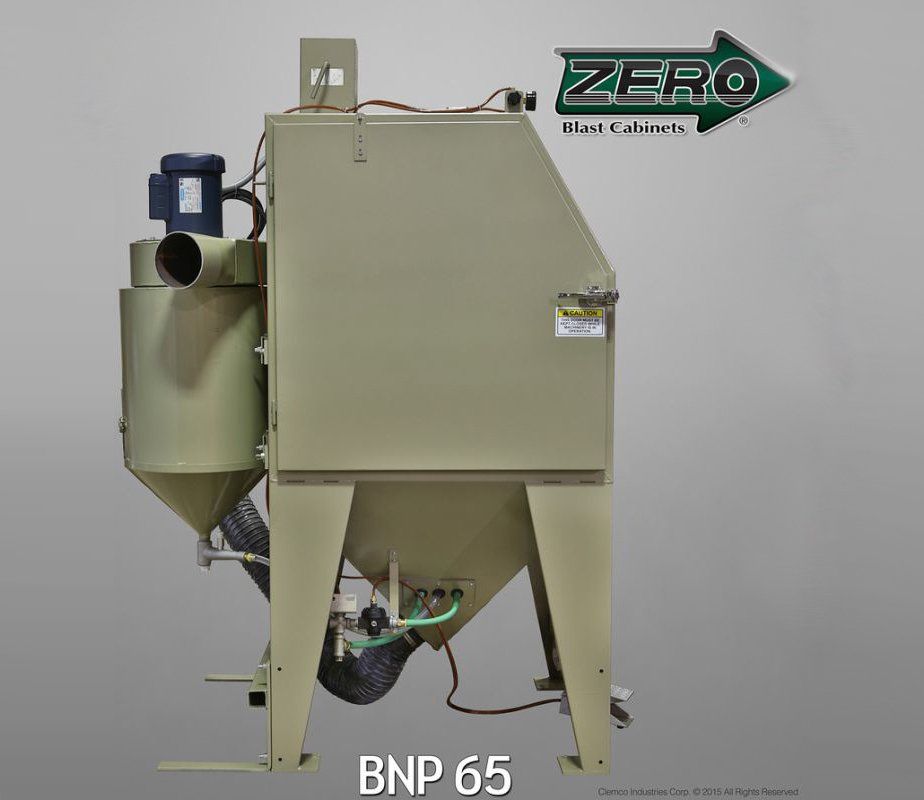

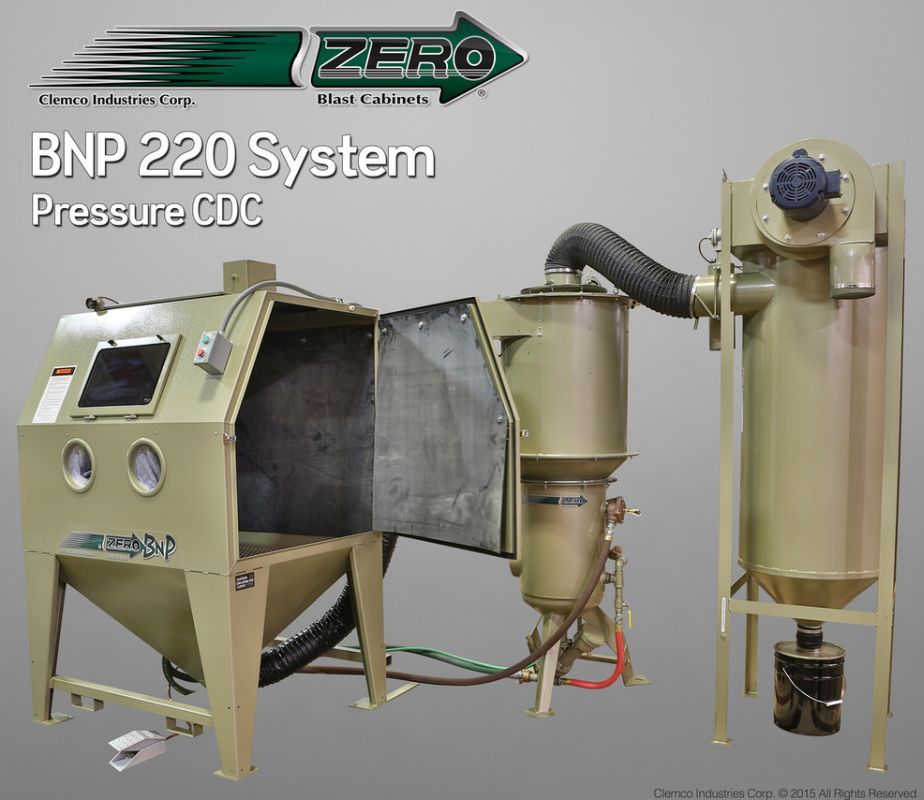

Clemco BNP Series

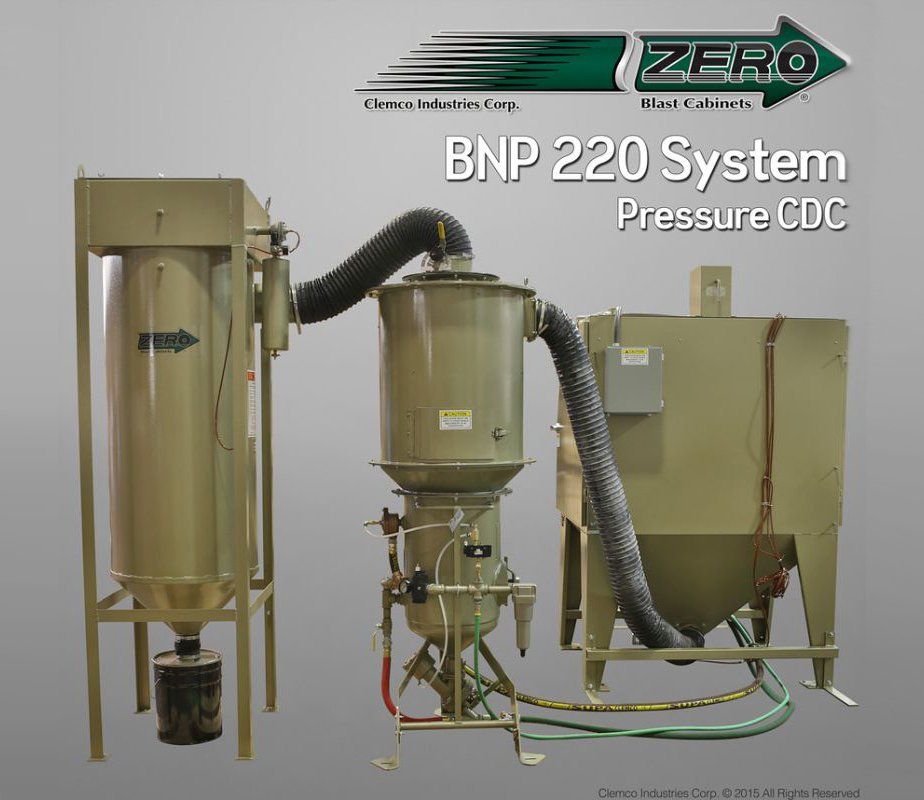

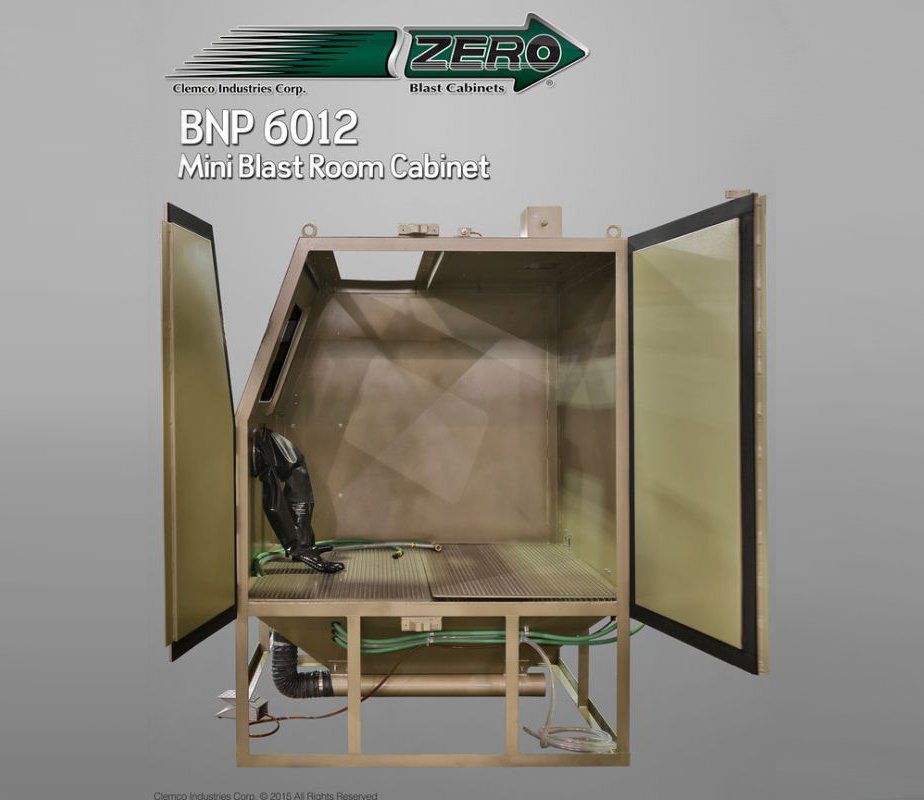

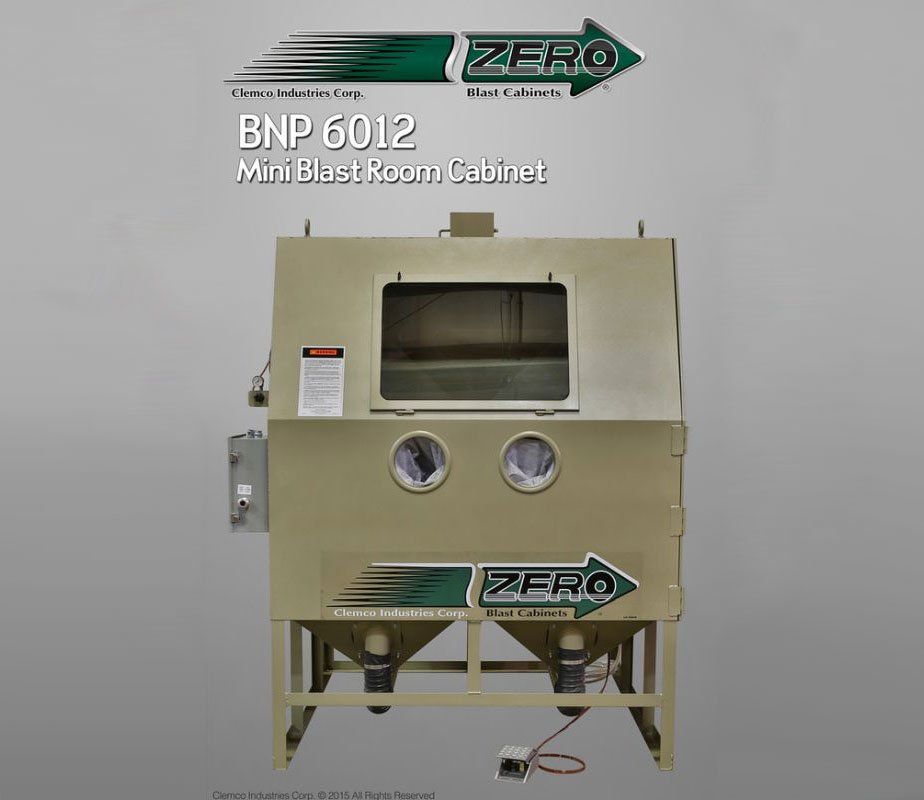

Clemco’s BNP series cabinets are the flagship of the ZERO® product line. These are well-built systems with endless options available to accommodate both small-time and large-scale production applications. BNP’s are available in suction or pressure fed configurations, each with their own dust collector/reclaimer options. Cabinet sizes range from smaller 42” x 32” models to “mini blast rooms” with working dimensions of 69” x 70.5”. In efforts of providing complete customization, available upgrades now include track extensions, turntables, roller systems, sound deadening kits, automation kits and much more. For applications where steel abrasive is the media of choice, high wear components, and curtain upgrades are available and can be installed as part of a finished system. For high throughput/production environments, an ergonomic version of the BNP cabinet is available which allows the operator to assume a more comfortable position while blasting, thus improving posture while reducing fatigue and overall wear to the body. A few of the BNP models are listed in the literature links below. Please feel free to reach out to us with any questions you may have or if you require assistance in choosing the right cabinet for your application.

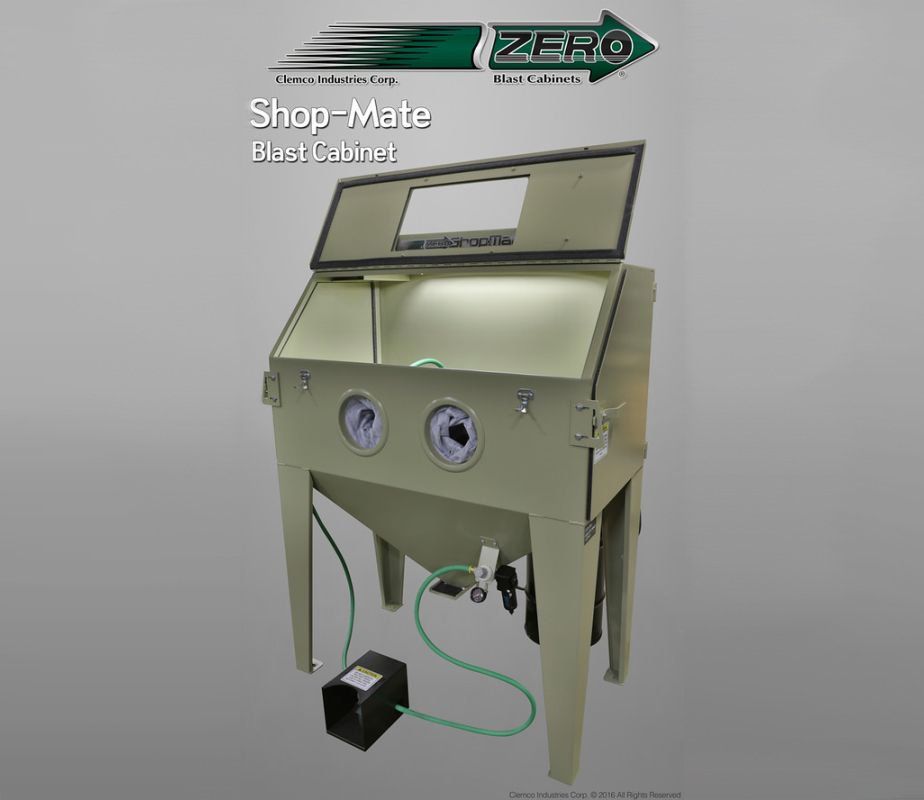

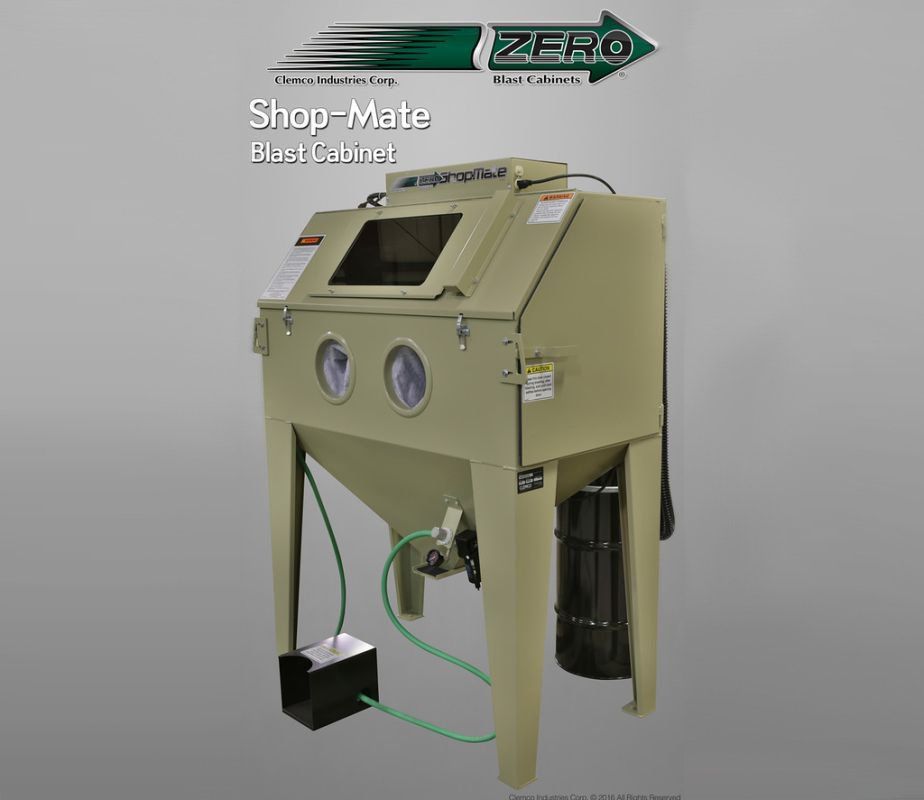

Shop-Mate
Contact T-Tex Industries for great pricing and sound advice.
